2.8.1. User key assignment

2.8.1. User key assignment



The user assigns a specific key to F1 ~ F7 of teach pendant. To automatically assign the keys depending on the task usage of spot/arc/palletizing, refer to 『[F2]: System』 → 『5: Initialize』 → 『3: Usage setting』.



(1)   Press the [SHIFT] + [User key] button to enter this function.



(2)   Select the F key to assign using the direction key ([<=/=>]).



(3)   Select the function to assign using the direction key ([Ý/ß]).



(4)   When you press the [F1: Selection] key or [Enter] key, you can assign the function you selected to the F key.



(5)   When you press the [F2: Delete] key or select the “No. 0: Cancel setting” item, you can reset the allocation of the selected F key.



(6)   When you press the [F7: Complete] key, the setting will be saved.

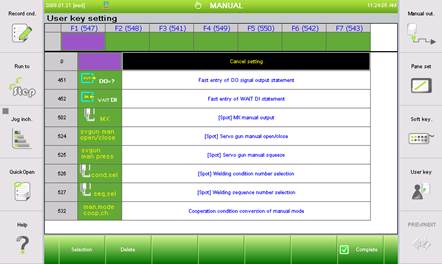

Figure 2.46 User key setting screen
