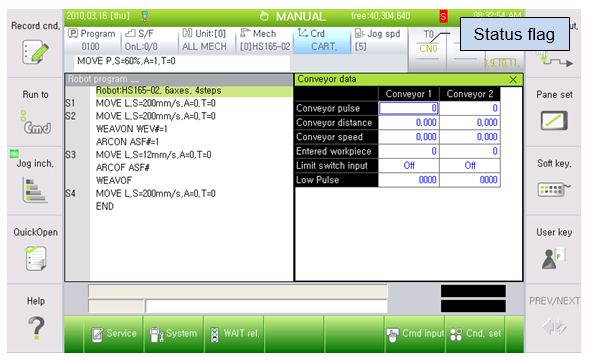

3.4.2. Status flag

n Conveyor operation mode

String of 『CN1』 / 『CS1』 / 『CT1』 is displayed respectively depending on Normal/simulation/test mode.

n Signal input condition during conveyor operation

If the signal is ON during the conveyor operation, the string showing the operating mode of the conveyor is displayed in order by adding one letter.

Ex) When conveyor is operating in normal mode

Conveyor is operating : 『』 → 『C』 → 『CN』 → 『CN1』

Conveyor is stopping : 『CN1』 fixed

n Conveyor synchronization playback ON/OFF condition

The color of the string changes to show the conveyor operating mode depending on whether conveyor synchronization playback is ON or OFF.
