2.5.2. State display

2.5.2. State display



The state display for command independent execution is exactly identical to that for multitasking. Considering that, refer to Multitasking Function Manual separately for more details



(1)   Display in simple mode

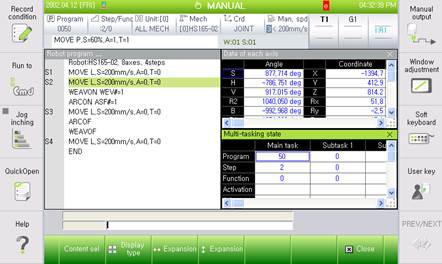

As shown in the below screen, the right section of the ‘auto’ mode will display the number of the subtask that is being executed currently.



(2)   Monitoring

The current execution state can be checked through the screen of [Service/Monitoring/ Multi-tasking state].
