2.1. Mechanism setting

2.1. Mechanism setting



A mechanism refers to a system like a robot, a servo gun or a positioner, and refers to Hi5 Controller User Manual for more details.



In general, there are two reasons for setting a mechanism. The first one is for designating an axis that will respond when pushing the [Axis Jog] key according to the entered state of the [Mechanism] key in manual mode. The second one is that setting a mechanism will help identify a unit for setting it.



In order to use this function, unit setting is essential. For this, mechanism setting is an essential process that must be performed.



It may look simple when we think that we identify robots, positioners and servo guns in their configuration as a mechanism.

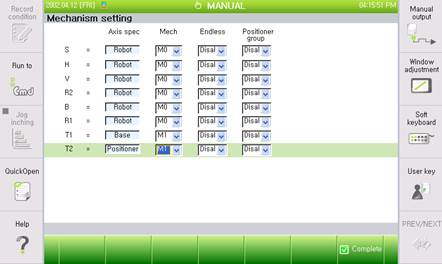

(1)   Set through the screen of [System/Initialize/Mechanism Setting] as shown below.
