3.9. Output Signal Assignment​



(1)   Select 『[F2]: System』 → 『2: Control Parameter』 → 『2: Input/Output Signal Setting』 → 『4: Output Signal Assign』

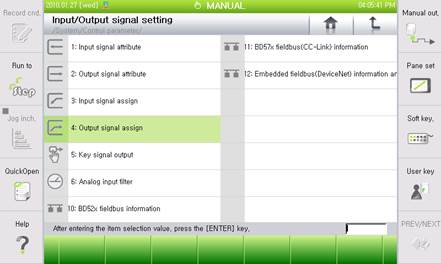

Figure 3.17 I/O Signal Setting Menu



(2)   Setting method is the same as that of the Input Signal Assignment. Click on the 『[F7]: Complete』 button to complete the setting.

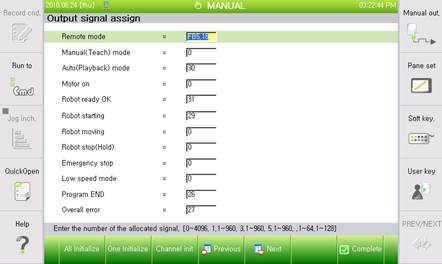

Figure 3.18 Output Signal Assignment
