16.1.2. Panasonic welder characteristic file editing

(1) Max welding current: [ 350]A (0 ~ 999)

Set the maximum welding current for a welder.

(2) Welding communication port: {Serial port #1(CNSIO), Serial port #2(OPSIO)}

Of the 2 serial ports that are supported by the Hi5 controller, one port for the communication with the welder needs to be designated.

(3) Welder models in details: {YD-350GB2, YD-350GZ4}

Set the model of a welder that will be used.

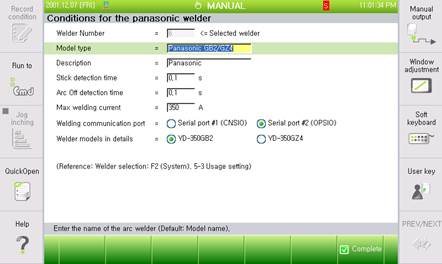

Figure 16.4 Panasonic welder condition setting
