16.1.1. HRWI characteristic file editing​



(1)   CAN communication speed: {125kbps, 250kbps, 500kbps, 1Mbps}

Set the communication speed of a welder. It is required to check the communication speed that is supported by the welder.



(2)   CAN communication port: {CAN port 1, CAN port 2, CAN port 3}

Of the 4 CAN ports that are supported by the Hi5 controller, a port for the communication with the welder need to be designated. As one of the 4 CAN ports has been already used basically, one of the remaining 3 ports needs to be designated for the use.



(3)   Types of welders: {Default, HYOSUNG, Others}

Set the type of a welder that will be used.

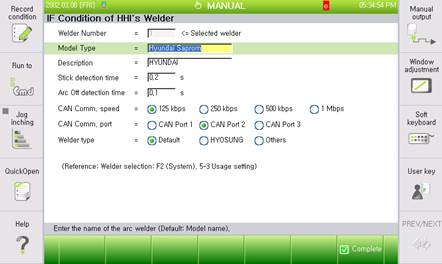

Figure 16.3 HRWI welder condition setting
