5.1.7. Bearing supporter

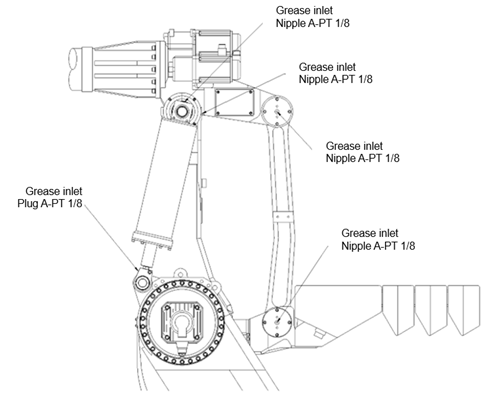

n Grease Replenishment

① Prepare a grease nipple A-PT1/8.

② When necessary, remove the inlet plug and assemble the nipple A-PT1/8.

③ Inject the grease into the grease inlet using a grease gun.

ü Grease type : GADUS S3 V220C 2

ü Amount of grease : 5cc

④ Remove grease nipple A-PT1/8 from grease inlet port.

⑤ Reinstall the grease plugs with seal tape.
