2.8. Application Wiring and Inspection Wiring Diagram

There are air unit and connector to connect the additional equipment to the robot manipulator.

Application connectors are indicated as follows.

[Note] Max air pressure of air connection : 5bar (5.1 kgf/cm2, 72.5 psi)

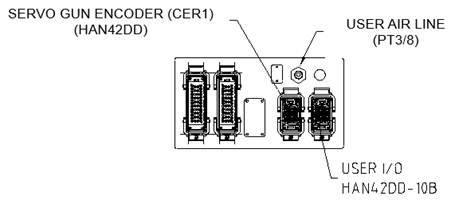

[ARM FRAME PART]

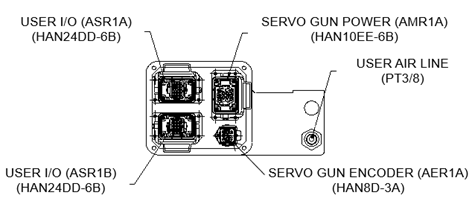

[BASE BODY PART]

Figure 2.8 Application Wiring and Inspection Wiring Diagram : [HS165S/HS200S]

Figure 2.9 Details of Application Connector : [HS165S/HS200S]
