2.6. Details of Wrist Axis Attachment Surface

2.6. Details of Wrist Axis Attachment Surface



When attaching the operating tool to the mechanical interface of robot's wrist flange, fasten it with a bolt at P.C.D. 125.

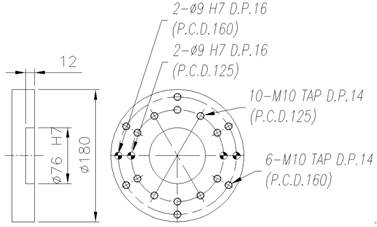

Figure 2.5 Details of Wrist Axis Attachment Surface : [HS165S]

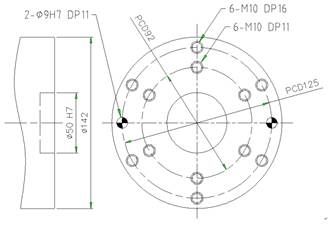

Figure 2.6 Details of Wrist Axis Attachment Surface : [HS200S]
