3.4.4. Dimension of Installation Surface

3.4.4. Dimension of Installation Surface



Fix the swivel base for robot's installation.

Refer to [Figure 3.8] for the dimension.

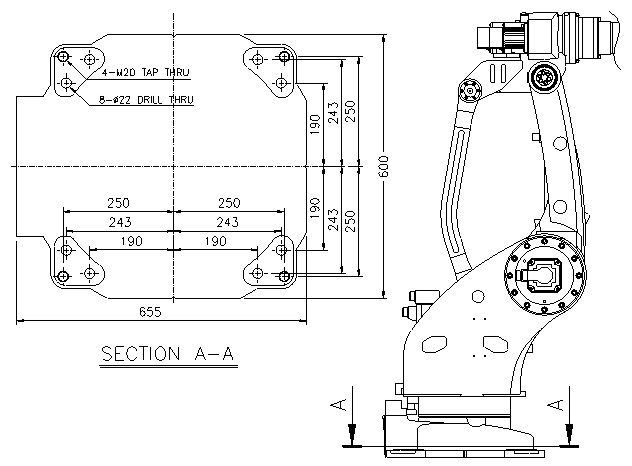

Figure 3.8 Dimension of Robot Installation : [HR050/HR030L]
