5.1.4. Bearing supporter

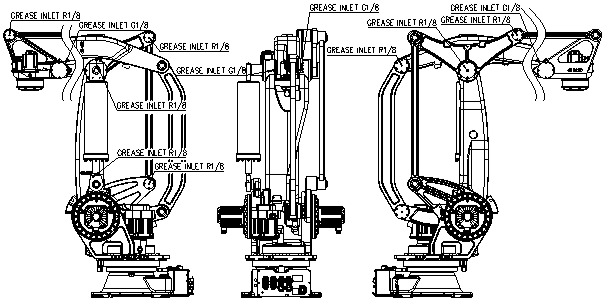

n Grease Replenishment

(1) Prepare a grease nipple A-PT1/8.

(2) Remove the grease inlet plug and install grease nipple A-PT1/8 to plug removal hole.

(3) Inject the grease into the grease inlet using a grease gun.

ü Grease type: GADUS S2 V46 2

ü Amount of grease: 3cc

(4) Remove a grease nipple A-PT1/8 from inlet.

(5) Reassemble plug in the original state.
