5.1.2. H, V-Axis Reduction Gear

5.1.2. H, V-Axis Reduction Gear





Attention   If the oil is injected without removing the plug of the level hole, increased internal pressure may cause oil leakage and damage to the oil seal, and the oil may cause damage to the motor by flowing into it. Be sure to remove level hole plug.



n Oil Replacement

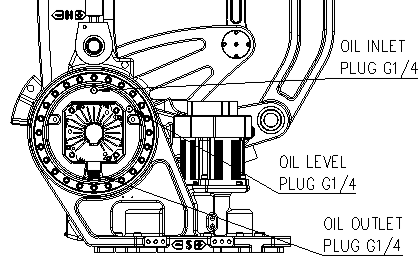

(1)   Adjust the posture of H-axis arm vertically and that of V-axis arm horizontally. (H: 90°, V: 0°)



(2)   Remove inlet and level hole plug.



(3)   Remove outlet plug.



(4)   After discharging used oil completely through outlet, attach outlet plug without fail.



ü  Oil type: Omala S4 WE150 ü  Amount of oil: 3000cc



(5)   Lubricate oil through inlet by using oil gun until oil does not overflow inlet.



(6)   Wipe up the smeared oil with a cloth and reassemble the plug of the inlet and the level hole.
