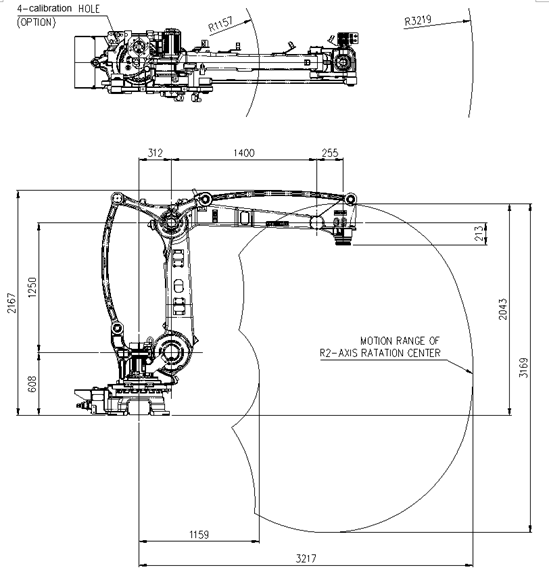

RobotHP1302. Specifications2.4. Robot Dimension and Working EnvelopeOn this page2.4. Robot Dimension and Working Envelope2.4. Robot Dimension and Working Envelope Figure2.3 Robot Dimension and Working Envelope
