Assemble the main body of the robot on the common base, Refer to the following dimensions.

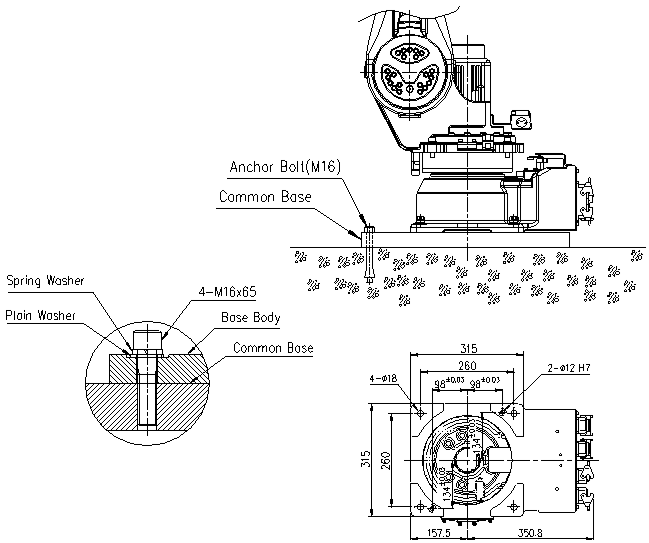

Figure 3.5Robot installation surface dimension
