4.3. Inspection of Main External Bolts
4.3. Inspection of Main External Bolts
The recommended bolt torque is shown in [Figure 4.1]
Apply the appropriate torque, where required, using the torque wrench and place the paint marking where the check-up is completed.
Table 4‑3 Inspection part for main bolts [HH007C]
No. | Inspection parts | No. | Inspection parts |
1 | Attachment bolts for the basic axis reducer | 4 | For 1st arm assembly |
2 | Attachment bolts for the basic axis reducer | 5 | For B, R1 axis motor assembly |
3 | Attachment bolts for the basic axis motor | 6 | For End Effector assembly |

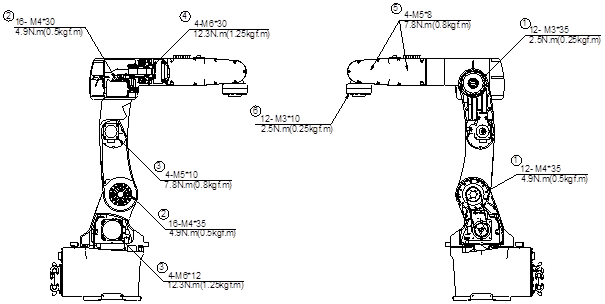

Figure 4.1 Inspection part for main bolts [HH007C]
