2.6. Details of Wrist Axis Attachment Surface

2.6. Details of Wrist Axis Attachment Surface​



When attaching the work tool on the flange of the wrist end, use the bolt of the applicable model.

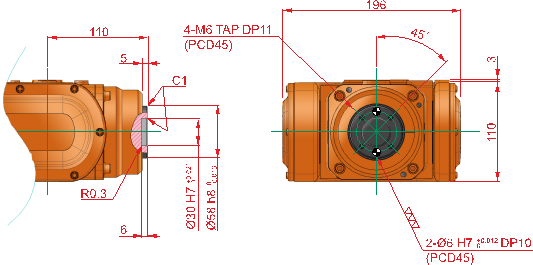

Figure 2.7 Details of Wrist Axis Attachment Surface : [HA006]

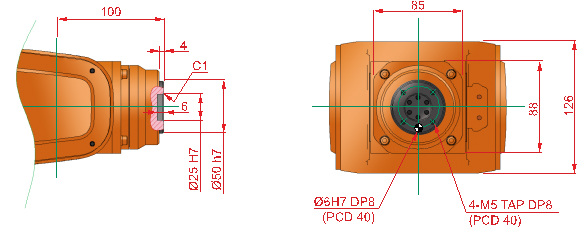

Figure 2.8 Details of Wrist Axis Attachment Surface : [HA020W/HA010LW]
