2.4. Robot Dimension and Working Envelope

2.4. Robot Dimension and Working Envelope​

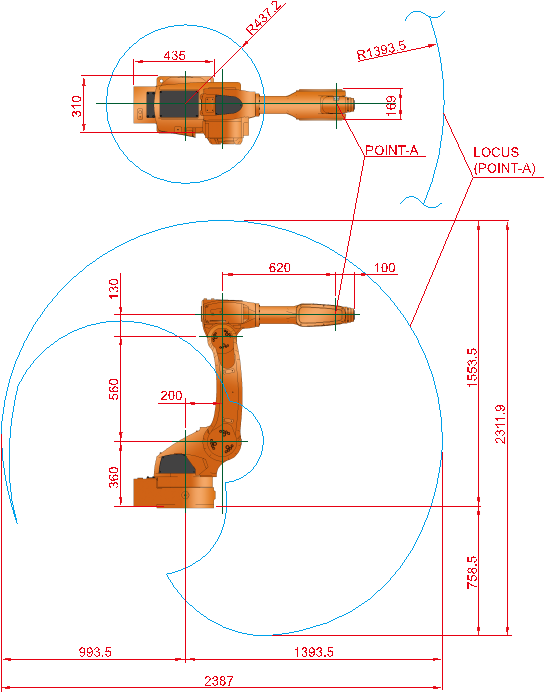

Figure 2.3 Robot Dimension and Working Envelope : [HA006]

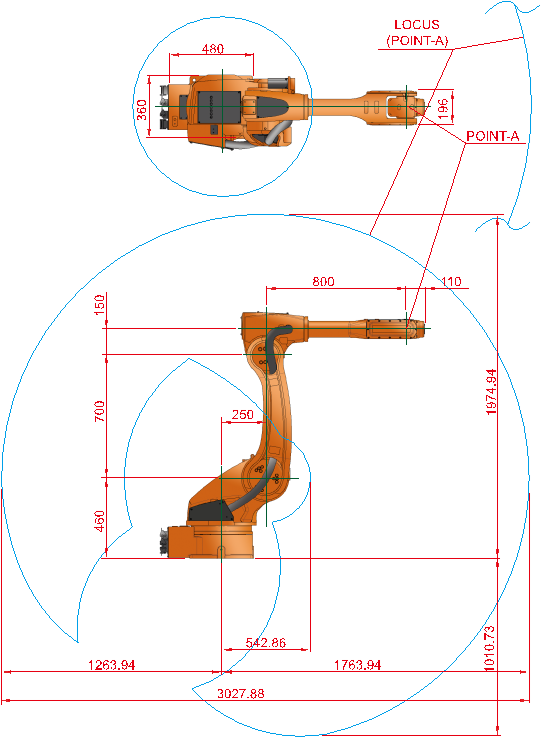

Figure 2.4 External dimension and operating area of main body: [HA020W]

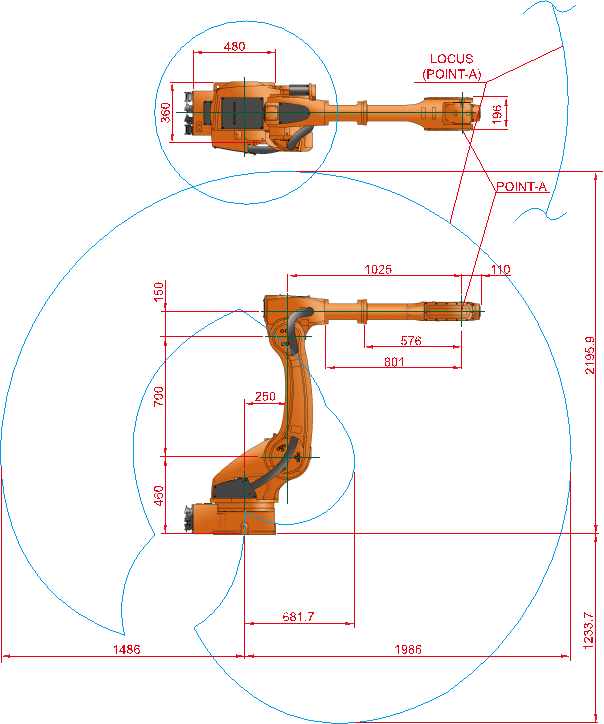

Figure 2.5 External dimension and operating area of main body: [HA010LW]
