2.1.1. Property information importing

2.1.1. Property information importing

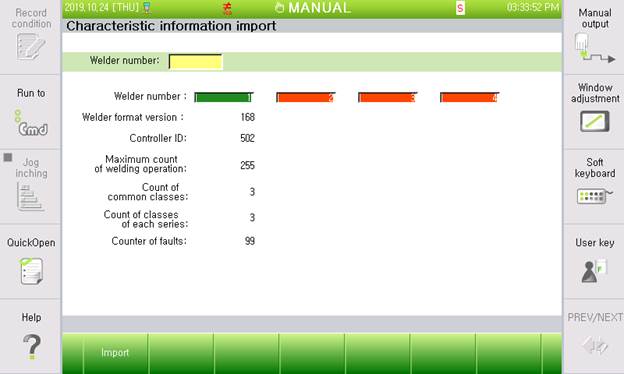

Figure 2.1 Property information importing



The property information is the data that must be prepared in advance to use the functions of the welder interface. It contains the structure of welder setting data, configuration of menus, etc. The property information is required by all functions of the welder interface.



The following shows the function of each part on the screen shown in Figure 2.1.



    For inputting the number of the welder from which the property information is to be imported.

    Shows the on/off-line status of the welder. Green color means online, and red color means off-line.

    Shows the properties related to the current welder by using the stored property information.

    If downloading was performed before, the property information would be shown even when the welder is off-line.

    Imports the property information inputted in to the controller. If importing is completed normally, a message window saying “Property information was stored” will appear.
