2.3. Welder error history

2.3. Welder error history​





Welder error history is a function to check the abnormality of the welder, if an error occurs during welding, through the teach pendant of the Hi5a controller.

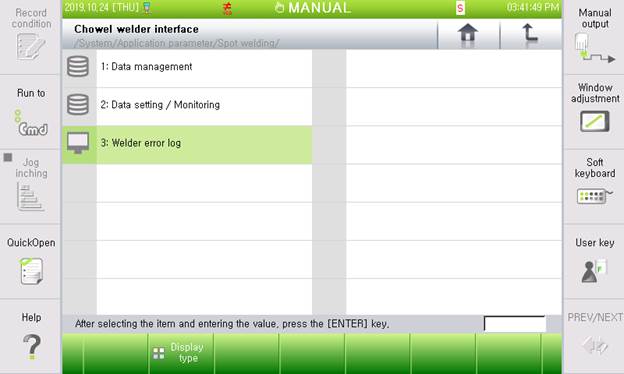

Figure 2.11 Welder error history menu

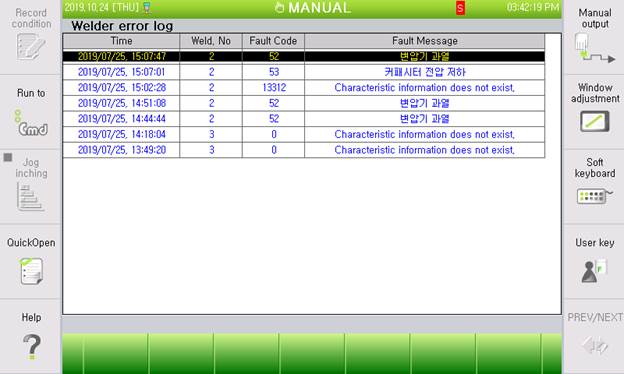

Figure 2.12 Welder error history



(Caution) While the welder is connected, an error-related status will be displayed even when there is no property information, but it is impossible to check what the error message is.
In this case, if the property information is imported through the property information import function, an error message will be normally retrieved.
