4.2. Embedded DeviceNet Slave Info and setting

4.2. Embedded DeviceNet Slave Info and setting​



Set the parameters, such as communication speed and the CAN port, and configure the connected slaves to use the embedded DeviceNet slave function. Follow the next procedure.

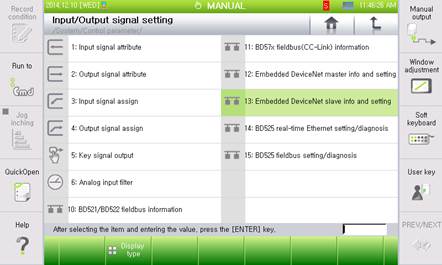

(1)   Select 『[F2]: System』 → 『2: Control parameter』 → 『2: Input/Output signal setting』 → 『13: Embedded DeviceNet slave Info and setting』.

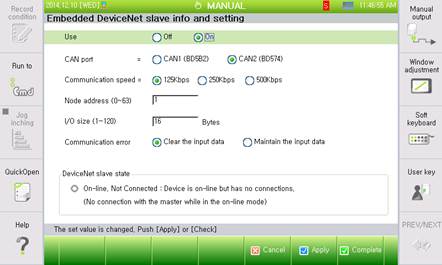

Figure 4.9 Information and the setting menu of the embedded DeviceNet slave







(2)   Select the following items and “On” to use them, and then click the “[F6]: Apply” button to operate the DeviceNet slave function.



n Use: For selecting whether to activate the DeviceNet slave function.

∙       On: activate the embedded DeviceNet slave function

∙       Off: deactivate the embedded DeviceNet slave function



n CAN port: set the CAN port to connect to the embedded DeviceNet slave communication.

∙       CAN1(BD5B2): connect DeviceNet to the BD5B2 board

∙       CAN2(BD574): connect DeviceNet to the BD574 board



n Communication speed:

For setting the communication speed of DeviceNet. The communication speeds that can be use for the embedded Device slave are 125Kbps, 250Kbps and 500Kbps.



n Node address:

For setting the MAC ID (Node address) of the embedded DeviceNet slave. The allowable range for setting the node address is 0~63.



n Size of input and output data:

For setting the size of the input and output data of the embedded DeviceNet slave. The allowable range for setting the size of input and output data is 1~120.



n Communication error handling:

An option for handling input data (FB5.X object) when a communication error occurs to DeviceNet.

∙       Clear the input data: When a communication error occurs, the FB5.X object will clear the value to be “0”.

∙       Keep the input data: When a communication error occurs, the FB5.X object will maintain the existing value.



n DeviceNet slave status: For showing the network status of the embedded DeviceNet slave.





The embedded DeviceNet slave function cannot be used while the BD570x CC-Link function is being used.
