2.2. BD525 DeviceNetDiagnosis of the master​



(1)   Execute "[F2]: System" →"2: Control parameter" → "2: Input and output signals setting" → "15: BD525 fieldbus setting and diagnosis."



(2)   Select "[F1]: Diagnosis." The communication status of the DeviceNet slave units can be checked.

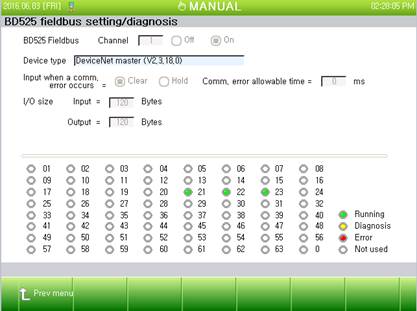

Figure 2.19 Diagnosis of the BD525 fieldbus master
