5.3.3. Pulse welding condition– Exclusive setting for GE2

(1) Pulse mode

Set either to use or not use pulse welding.

(2) Pulse type : Hybrid/Soft/Hard

Set the type of pulse welding.

(3) Initial peak current

Set the peak current of the pulse welding in the initial welding condition.

(4) Initial base current

Set the base current of the pulse welding in the initial welding condition.

(5) Pulse peak current (IP)

Set the peak current of the main pulse welding.

(6) Pulse base current 1 (IB1)

Set the base current 1 of the main pulse welding.

(7) Pulse base current 2 (IB2)

Set the base current 2 of the main pulse welding.

(8) Pulse peak rising (Ipr)

Set the current rising of the pulse welding.

(9) Pulse peak falling (Ipf)

Set the current falling of the pulse welding.

(10) Pulse rising time (Tipr)

Set the current rising time of the pulse welding.

(11) Pulse peak time (Tip)

Set the peak current hold time of the pulse welding.

(12) Pulse falling time (Tipf)

Set the current falling time of the pulse welding.

(13) Pulse frequency

Set the frequency of the pulse welding.

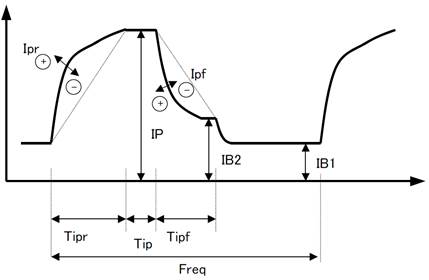

Figure 5.6 GE2 pulse wave elements
