4.5. Megmeet welder property file editing

4.5. Megmeet welder property file editing​



(1)   QuickStop: {Use, No use}

This function sets whether to use the QuickStop function when ending in the middle of arc welding. When the QuickStop function is set as “Use,” the welding will end in the middle of the welding process without handling craters. Support will vary depending on welders (to be supported in the case of ESAB and Froniu while not in EWM).



(2)   Input setting start port

If a port is set for this function, the port will be used as the reference port that will be the input start port when an auto-assignment takes place.



(3)   Output setting start port

The port set for this function will be used as the reference port that will be the output start port when an auto-assignment takes place.

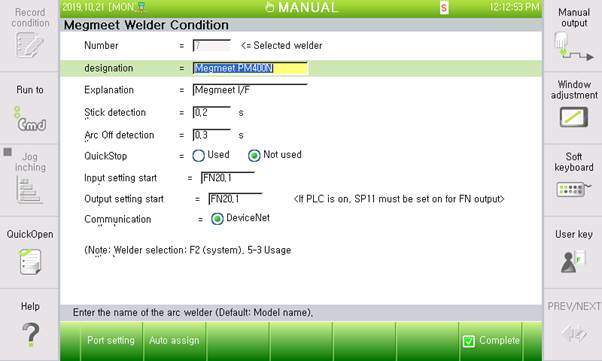

Figure 4.8 Megmeet welder condition setting
