4.4. ESAB/Fronius/EWM welder characteristic file editing

4.4. ESAB/Fronius/EWM welder characteristic file editing​



(1)   QuickStop: {Used, No Used}

This function sets whether to use the QuickStop function when ending in the middle of arc welding. When the QuickStop function is set as “Used,” the welding will end in mid-operation without handling craters. Support will vary depending on welders (ESAB is supported, but Fronius and EWM are not supported)



(2)   Input set start port

If a port is set for this function, it will be used as a reference port that will be an input start port when auto assignment takes place.



(3)   Output set start port

If a port is set for this function, it will be used as a reference port that will be an output start port when auto assignment takes place.

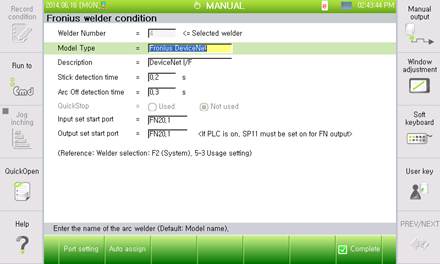

Figure 4.7 Fronius welder condition setting
