4.3. Panasonic welder characteristic file editing

4.3. Panasonic welder characteristic file editing



(1)   Max welding current: [350]A (0 ~ 999)

Set the maximum welding current for a welder.



(2)   Welding communication port: {Serial port #1(CNSIO), Serial port #2(OPSIO)}

This sets the serial port used for communicating with the welder.



(3)    Welder models in details: {YD-350GB2, YD-350GZ4, YD-350GE2}

Set the model of a welder that will be used.

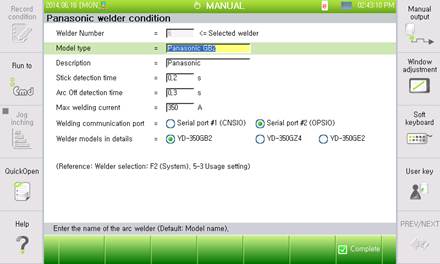

Figure 4.6 Panasonic welder condition setting
