4.3.7.4. BD5C0 Connector

4.3.7.4. BD5C0 Connector



The following picture shows the layout of the electrical board (BD5C0)’s connectors and the table shows the uses of each connector and other connection devices.

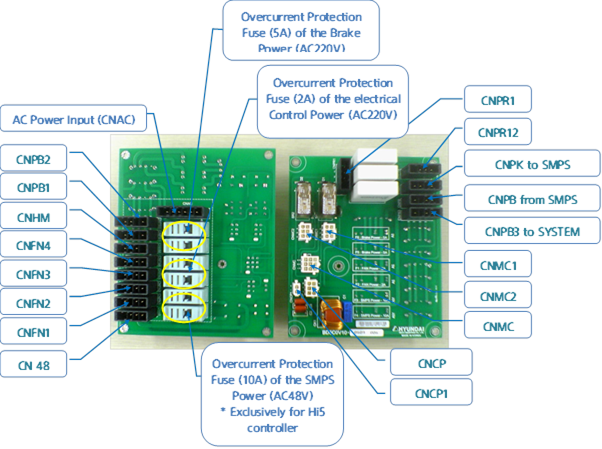

Figure 4.71Connectors of the BD5C0



Table 4‑78 Types and applications of fuses in the electronic control module

Name	Use	External Devices Connection
CNAC	Various AC power inputs	Transformer
CN48	SMPS power output(AC48V): Not used	Hi5a controller Rack SMPS
CNFN1~4	Electric control power output(AC220V)	FAN Module
CNHM	Power Output (AC220V) for Hour Meter	AC220V Hour Meter (Option)
CNPR1	Precharge Resistance Power Input	MC2 Input
CNPR2	Precharge Resistance Power Output	MC2 Output
CNBK	Brake Power Output (AC220V)	Brake Power SMPS Input
CNPB	Brake Power Input (DC24V)	Brake Power SMPS Output
CNPB1,2	Brake Power Output (DC24V)	Servo Amp
CNPB3	Brake Power Output (DC24V)	System Board CNPB Input
CNCP1	Input of Motor Power Circuit Breaker Monitoring	Motor Power Circuit Breaker
CNCP	Output of the Monitoring of Circuit Breaker and Fuse	System Board CNCP Input
CNMC1,2	The Drive and Monitoring of Magnetic Contactor	Magnetic Contactor MC1, MC2
CNMC	Drive Signal and Monitoring Signal for Magnetic Contactor	System Board CNMC Input
