3.4.1. Parameter Edit

3.4.1. Parameter Edit



(1)   We will use speed entry screen as an example. To edit the speed with parameter,



(2)   Press the 『[F6]: Variable』 key and move to parameter entry condition.



(3)   Select V parameter by pressing 『[F1]: V』 key.



(4)   Select the parameter type by pressing 『[F3]: V%[ ]』 key.



(5)   If you select a parameter type with scripts, the cursor is located to the script entry position Use the [Number] key to enter the script in the input frame and the script will be added right before the cursor.



(6)   Press the 『[F6]: Variable.』 → 『[F1]: V』 → 『[F1]: V%』 key and select the parameter with script again.



(7)   Enter the number 2 using the [Number] key and press the [ENTER] key to reflect it to the edit frame.

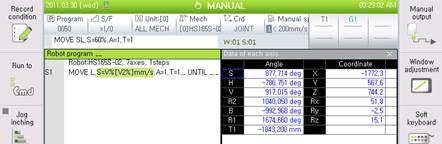

Figure 3.8 Parameter edit



(8)   Press the [ENTER] key one more time to return to sentence cursor.
