3.6. Block Edit

3.6. Block Edit



This copies a block of the program and enables the user to copy, cut or delete the block. The number of the control line including the step number is automatically changed after copying.

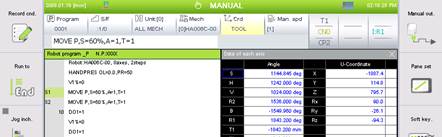

Figure 3.13 Block edit 1



(1)   To copy/cut/delete in line units, move the cursor to the address area press the 『[F2]: block edit』 key. This will highlight all address and command area. Use the [Direction] key to move the cursor to the starting line of the block selection.

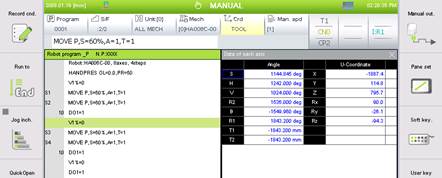

Figure 3.14 Block edit 2



(2)   Press the 『ENTER]』 key at the starting line of the block to select. Move to the last line of the block to select using the [Direction] key. You will see the highlighted block as shown in the following screen.

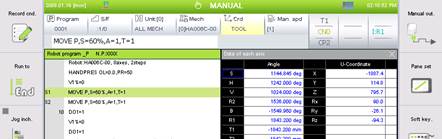

Figure 3.15 Block edit 3



(3)   Move to the selected area and press the 『[F2]: Copy』 key to save the selected block to the clipboard and then the following 『[F3]: Paste』 menu will be displayed. Use the [Arrow] key to move the cursor to the previous row (S3 row) before the row to copy, and press『[F3]: Paste』 to copy the saved block from the clipboard as follows.

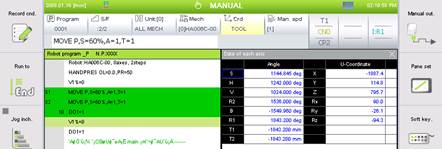

Figure 3.16 Block edit 4
