2.1.5. Linear interpolation programming method

2.1.5. Linear interpolation programming method​



As a stationary tool number is to be changed through the SELPTNO command, the SELPTNO command must be recorded prior to the MOVE command in order to set the stationary tool number. In the same context, the SELPTNO command should be used when needed to change a stationary tool number.

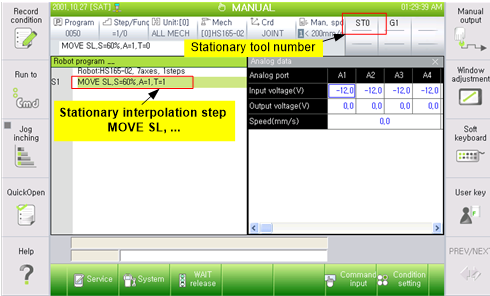

For commanding the stationary tool linear interpolation, the MOVE SL command should be used. The user can shift to the MOVE SL command for the use, or record the MOVE command first before changing to the MOVE SL command to apply interpolation.





If a stationary tool value set for the SELPTNO command is wrong, it will lead to abnormal operation. Users should pay attention to it.
