3.4.1. Sensor synchronization data

3.4.1. Sensor synchronization data

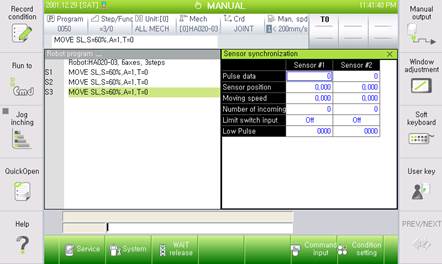

Sensor synchronization related data can be checked by selecting the screen of “[F1]: Service → [1: Monitoring] → [5: Sensor Synchronization Data]”.







n Pulse data

Variable for controlling the count of pulses received from the pulse generator.



n Sensor position

Variable for keeping the distance the workpiece traveled from the limit switch.



n Moving speed

Variable for controlling the moving speed of the conveyor (press).



n Number of incoming job objects

The count of workpieces that entered after passing through the limit switch.



n Limit switch input

This is for displaying whether the limit switch is activated



n Low Pulse

This is for displaying the values of processed encoder pulses that are fed from the conveyor I/F board. In normal situation, repetition will take place from 0 to FFFF
