3.2.5. Palletize Reset Input (PALRST)



(1)   Input Pallet No. [Input Palletize Pallet No. (1 - 16)]



(2)   When the Forced Reset needs to be carried out, the DI condition signal to be received from the outside needs to be entered.

[Input Condition Signal (0 - 240)]



(3)   Input Closing Output Signal. [Input Response (Ack) Signal (1 - 318)]

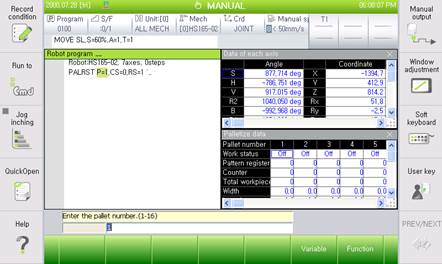

Palletize Forced Reset is used for terminating Palletize Operation forcefully because the situation to halt loading is occurred in external. The process is I Signal Input → Output Response Signal → Pallet Exit. For the record of Palletize Forced Reset Function, set up the step in manual mode, input PALRST and then set up each parameter value according to guide message. And then the screen appears as below,





n Pallet No. is marked as P#.



※ Attention



l You should accurate Pallet No.
