3.2.2. Palletize Picking-Up Shift (PALPU) Input

3.2.2. Palletize Picking-Up Shift (PALPU) Input​



(1)   Input PALPU command.



(2)   Input Palletize Pallet No.

[Input Palletize No. (1 - 16)]



(3)   Input Beginning Layer Unit.

[Input Beginning Layer Unit. (1 - 100)]



(4)   Input Shift Amount.

[Input Picking Ascent Shift Amount (-2000 - 2000)]

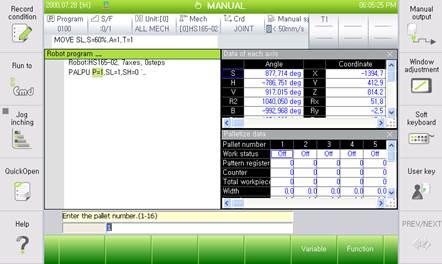

When it comes to the record of the Palletize Picking-Up Shift, it will be shown as below when, after the step is set at the manual mode, PALPU is entered and each parameter is set according to the announcement.





n Palletize Pallet No. is marked as P#.
