4.3. Other setting

4.3. Other setting

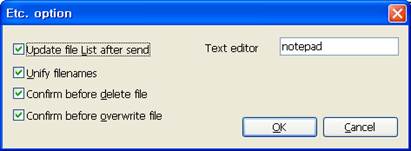

Figure 4.4 Other setting dialog box



When selecting 『Option(O) – Etc.(E)』on the menu, other setting dialog box will be displayed as [Figure 4.4]. Table 4-1 provides the description of each item



Table 4‑1 Other setting dialog box

Item name	Description
Update file List after send	It displays copied result by copying a file and renewing list box of file list.
Unify filenames	When selecting a file from controller side or PC side list box, edit box of both sides will be assigned as the same file name. (For example, when selecting and copying 0002.JOB file of PC side, it will be also copied on controller side as a file named 0002.JOB file. If you want to copy a file under the name of 0003.JOB, change 0002.JOB of controller side edit box to 0003.JOB with key board and copy it.)
Confirmation before delete file	When clicking  button, it asks the confirmation of delete with message box.
Confirmation overwrite file	When copying a file from controller to PC, it asks the confirmation of overwriting with message box if there is a file with the same name on current folder of PC.
Text editor	When clicking  button, this editor assigns the name of application to be called. Basic setting is notepad (note pad of window).
