6.1. Load Robot

6.1. Load Robot​



Right click on the workspace of the tree window and select 『Load Model as a Child…』from the popup menu.

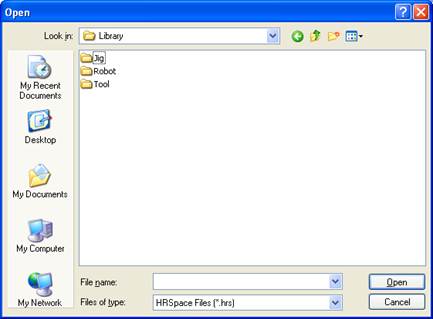

The open window appears for the Library folder.

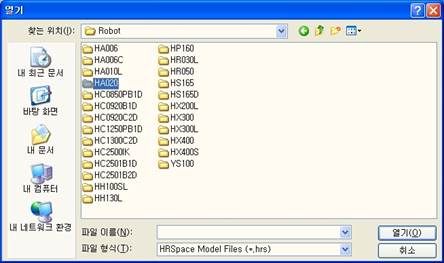

Open the Robot folder under the Library folder, and open the HA020 folder to select the hrs file.







A new robot named “noname” has been created under the workspace of the tree window as shown below. The robot shape is shown also in the 3-D screen.
