3.1.2. PC side setting

3.1.2. PC side setting

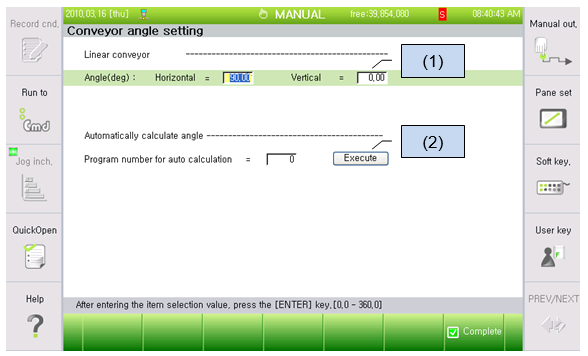

When you click on 『[F2]: System』 → 『4: Application parameter』 → 『4: Conveyor synchronization』 → 『2: 1st conveyor parameter』 and select 『[F1]: Angle set』, the following screen will be displayed.



If the conveyor type is set to <Circle>, the following detail of (1) will be changed to set the angle and center of the circular conveyor.





(1)   You can check and manually set the angle of the currently set conveyor.



(2)   To automatically calculate the conveyor angle, enter the taught program number and press the [Execute] button. The calculate result will be displayed in (1).



(3)   Press the 『[F7]: Complete』 key to save the setting.
