2.4. Measured value and set value

2.4. Measured value and set value



『Measured value』 shows the maximum values of the “disturb. torque” and “disturb. torque rate” occurring along the operation range of the relevant level after the controller is powered on.

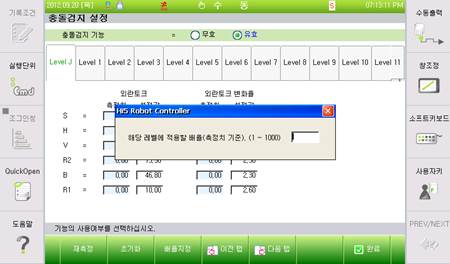

The user needs to set the 『set value』 while securing enough room in the measured value. Can carry out the setting by using the 『F3: Rate set.』 button in each input window. 120(%)–150(%) is recommended.

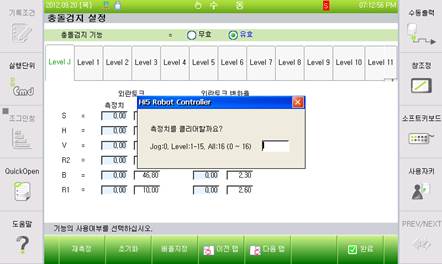

The 『F1: Remeasure』 key can be used to clear the measured values of the “disturb torque” and “disturb torque rate,” and then measure again. When required to clear one level, input the level number. When required to clear the total, input 16.
