1.5.1. Teach pendant CC-Link version setting



As shown below, users can select the version of the CC-link of the BD570 or BD58A in the teach pendant BD57x fieldbus information and setting section. Refer to [2. BD57x and BD58A fieldbus board setting] for more details.

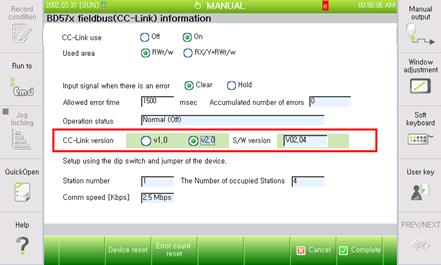

Figure 1.3 Screen for selecting a CC-Link version



※ The function of selecting the CC-Link version in the teach pendant is supported only when the version of the Hi5 controller main software is V31.31.10-01 or higher.



※ If the software version of the BD570 or BD58A is V2.01 or higher, and the main software version is V31.31.10-00 or lower, there are three ways, as shown below, to use the CC-Link V1.0.



l Upgrade the controller’s main software to V31.31.10-01 or a lower version.

l Downgrade the software of the BD570 or BD58A to V1.03, which is exclusively for CC-Link V1.0.

l If the software version of the BD570 or BD58A is V2.04 or higher, an exclusive switch for the CC-Link V1.0 is required to be set.

(Refer to the next page for more details)
