1.6. Exclusive switch for the CC-Link V1.0 (SW V2.04 or higher)
1.6. Exclusive switch for the CC-Link V1.0 (SW V2.04 or higher)
This is for running the CC-Link V1.0 by setting the BD570 or BD58A board dip switch, regardless of the CC-Link version set in the teach pendant. This function will be effective when the application of the CC-Link V1.0 is necessary while the controller’s main software version is V31.31.10-00 or lower and the software of the BD570 or BD58Aa board software is V2.04 or higher.
If the Pin #1 of the BD570 board DSW1 is turned on, the board will run exclusively on the CC-Link V1.0. On the other hand, if the Pin #1 is turned off, the board will run on the CC-Link version set in the teach pendant.

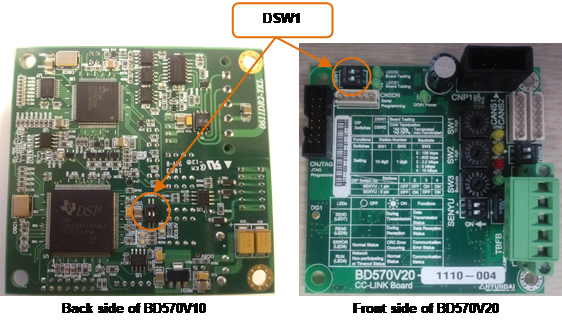

The BD570V10 board DSW1 is mounted on the back side of the board, while the switch is located on the front side of the board in the case of the BD570V20 board.
Figure 1.4 BD570 DSW1 location
Table 1‑4 BD570 DSW1 setting
Switch name | CC-Link version | BD570 DSW1 | Figure | Remarks | |
1 | 2 | ||||
DSW1 | V2.0/V1.0 (Selective) | OFF | No use |
| Condition when shipped |
Exclusively for V1.0 | ON | No use |
|
| |
If the Pin #1 of the BD58A board DSW2 is turned on, the board will run exclusively on the CC-Link V1.0 regardless of the CC-Link version set in the teach pendant.

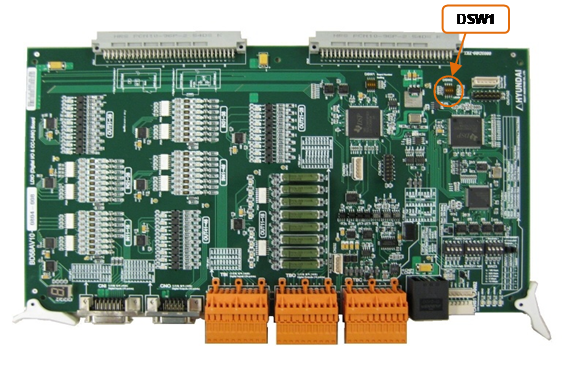

Figure 1.5 BD58A DSW1 location
Table 1‑5 BD58A DSW2 setting
Switch name | CC-Link version | BD58A DSW2 | Figure | Remarks | |||
1 | 2 | 3 | 4 | ||||
DSW2 | V2.0/V1.0 (selective) | OFF | No use | No use | No use |
| Condition when shipped |
Exclusively for V1.0 | ON | No use | No use | No use |
|
| |
