1.4. CC-Link Function of Hi5 Controller
The Hi5 controller is one of the CC-Link slave systems, which performs the I/O exchange with a CC-Link master in PLC or PC card form. In order to use the CC-Link function in the Hi5 controller, a BD570 CC-Link board or a BD58A LDIO board needs to be mounted.
The BD570 or BD58A board is available in different software versions, including the one exclusively for the CC-Link V1.0, CC-Link V2.0 or the one that supports both the CC-Link V1.0 and CC-Link V2.0 (Refer to [Table 1-2]).
If the software version of the BD570 or BD58A board is V2.01 or higher, it is required to set the version of the CC-Link of the teach pendant as V1.0 or V2.0. However, if the controller main software version is V31.10-00 or lower, the CC-Link version setting function will not be provided. In that case, the BD570 or BD58A board will run on the CC-Link V2.0. Refer to [1.5 Hi5 Controller CC-Link Version Selection]in order to use the CC-Link V1.0.
Table 1‑2 Software version of BD570 and BD58A
SW version | Main SW version | CC-Link runs on | Remarks |
V1.03 or lower | None applicable | CC-Link V1.0 | Exclusive SW for the CC-Link V1.0 |
V2.00 | None applicable | CC-Link V2.0 | Exclusive SW for the CC-Link V2.0 |
V2.01 V2.02 | V31.10-00 or lower | CC-Link V2.0 |
|
V31.10-01 or higher | CC-Link V1.0 | Selects the CC-Link version in the teach pendant | |
CC-Link V2.0 | |||
V2.04 or higher | V31.10-00 or lower | CC-Link V1.0 | Turn on the exclusive switch for the CC-Link V1.0 (Pin #1 of both the BD570 DSW1 and BD58A DSW2) |
CC-Link V2.0 | Turn off the exclusive switch for the CC-Link V1.0 (Pin #1 of both the BD570 DSW1 and BD58A DSW2) | ||
V31.10-01 or higher | CC-Link V1.0 | Can select the CC-Link version in the teach pendant | |
CC-Link V2.0 |

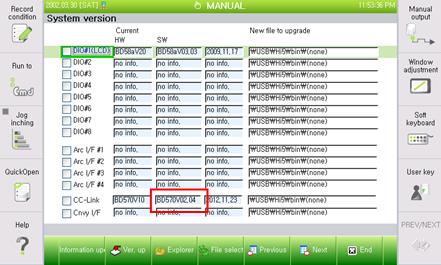

※ The version of the BD570 or BD58A board can be checked by selecting 『[F1]: Service』 →『7: System diagnosis』 →『1: System version』.
Figure 1.2 Checking of the version of the BD570 or BD58A board
The functional specification of the Hi5 controller is as shown below in [Table 1-3].
Table 1‑3 CC-Link specifications of the Hi5 controller
Kind | Remote Device | |
Max. number of stations | 4 | |
Extension cycle setting (in case of CC-Link V2.0) | 4 times, 2 times | |
Input | CC-Link V2.0 | Max. 120 bytes (960-bit) (RWw0–59, RX0–127) |
CC-Link V1.0 | Max. 32 bytes (256-bit) (RWw0–15, RX0–127) | |
Output | CC-Link V2.0 | Max. 120 bytes (960-bit) (RWr0–9, RY0–127) |
CC-Link V1.0 | Max. 32 bytes (256-bit) (RWr0–15, RY0–127) | |
※ CC-Link V2.0 expansion by two-time cyclic setting is only available at BD570/BD58A SW version V2.05 or higher.
