6.4. Characteristics and assignment of input and output signal

6.4. Characteristics and assignment of input and output signal



(1)   The signal of BD52x can be assigned to characteristics and assignment of input and output signal by selecting 『[F2]: System』 → 『2: Control parameter』 → 『2: Input/output signal setting』.

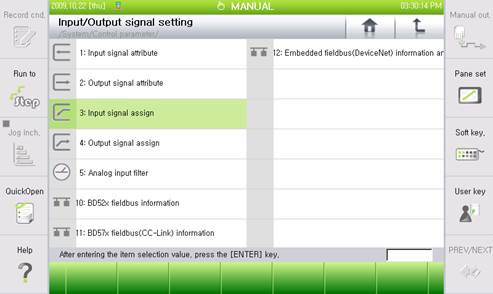

Figure 6.3 Input and output signal setting menu



(2)   For example, input “3.18” in the edit field, and click [ENTER] if you want to receive an external RESET signal from the input signal assignment screen as the No. 18 input signal in No. 3 channel of BD52x. 3.18 will be changed to FB3.18 automatically. Click 『[F7]: Complete』to complete the setting.

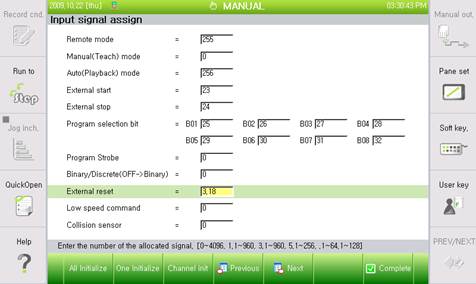

Figure 6.4 Input signal assign



(3)   “0” means non-assigned and “1~4,100” means hard wired input. “1.n, 3.n” means 1, 3 channels of BD52x Fieldbus, and “5.n” means BD57x CC-Link.
