9.1. Operation

9.1. Operation



In auto mode, users can press the [change I,V] key among the user keys.

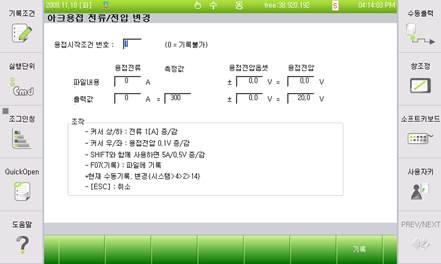

Figure 9.1 Arc welding current/voltage change dialog box



(1)   Description

-   File content: Shows settings recorded on the file.

-   Output value: The current value of the output to the welder will be displayed.



(2)   Operation

-   Output change: Current or voltage can be changed using [ï][ð][ñ][ò] keys.

-   Record on the file: When the [F7: Record] key is pressed, the output value will be saved in the welding start condition file, and the current screen will shift to the previous screen.

-   Cancel: When the [ESC] key is pressed, the current screen will shift to the previous screen while the output value is not saved in the welding start condition file.



The change in the current/voltage will be saved only in the welding start condition, not in the welding end condition. When the current/voltage is changed through “ARCON C=<Current value>, V(VP)= <Voltage value>, ASF#=<Arc welding condition number>”, the change will be saved in the welding start condition file, while not to be reflected in “C=<Current value>, V(VP)=<Voltage value>”.
