15.1. Weaving condition

While the cursor is placed on the WEAVON WEA#= command, if the [QuickOpen] key is pressed, the weaving condition editing screen will be displayed as shown below.

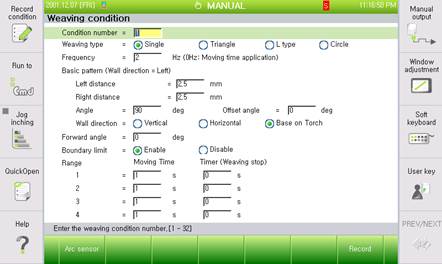

Figure 15.1 Weaving condition dialog box

The content per each item of weaving condition is as follows.

(1) Condition number: [ 1] ( Range :1 ~ 32 )

This is the number of the condition where the weaving operation setting is saved. By entering numbers or by using the [SHIFT] + [↑], [↓] keys, users can edit the relevant condition number by moving to the previous or the next condition number of the current number.

(2) Weaving type: <Single, Triangle, L type, Circle>

Designate the weaving operation type. (Refer to 6.1 Weaving Form)

(3) Frequency: [ 2] Hz ( Range : 0.0 ~ 10.0 )

Set the weaving frequency. The range of frequency is 0.0 ~ 10.0Hz. In case the frequency is set to ‘0’, the moving time will be applied. (Refer to 6.2 Frequency)

(4) Basic pattern

Set the weaving operation pattern. (Refer to 6.3 Basic pattern)

Left distance: [2.5] (Range: 1.0 ~ 25.0mm)

Right distance: [2.5] (Range 1.0 ~ 25.0mm)

Angle: [90] (Range: 0.1 ~ 180.0°)

Wall direction: <Vertical, Horizontal, Base on Torch>

(5) Forward angle : [0] (Range: -90.0 ~ 90.0°)

It displays the weaving angle direction to the processing direction. In case this is set to 0°, proceeding direction and weaving direction will be at right angles to each other. (Refer to 6.4 Forward Angle)

(6) Boundary limit: <Enable, Disable>

Set whether to limit weaving trace by boundary of welding start section and end section. In case this function is set to valid, weaving trace will be limited to the welding section. (Refer to 6.5 Boundary Limit)

(7) Moving time: [ 1] (Range: 0.01 ~ 10.0 sec), Timer: [ 0] (Range: 0.00 ~ 2.00)

In case the weaving frequency is set to ‘0’, weaving will be executed in the moving time. Set the moving time per each section and the weaving stop time between sections. (Refer to 6.6 Moving Time)
