5.2.2. Drawing arc sensing wave form

5.2.2. Drawing arc sensing wave form



(1)   Select “ROBOT.GT0” from Microsoft Excel,

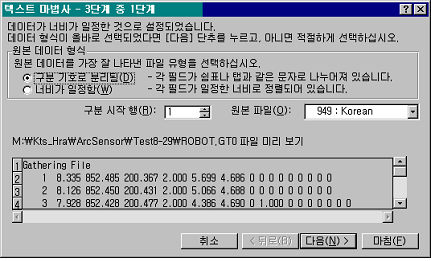

(2)   Select “Delimited” and click on [Next].

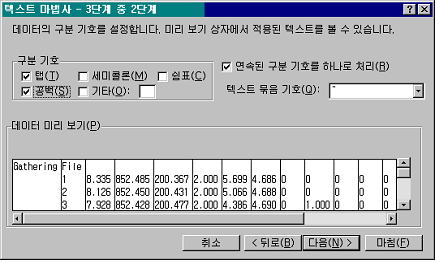

(3)   Select space and click on [Finish].

Drag cells 2-F, G, H and I and with the [Shift] key pressed, press the [Finish] and [Down] key to select all. Click on [Chart Wizard] and select ‘Line’, and then click on [Finish] or press the [Enter] button to draw the first graph of this chapter. In the same method, you can draw the second graph of this chapter by selecting cell K, L, M and N in the same method.
