5.1. Information gathering file preparation

5.1. Information gathering file preparation

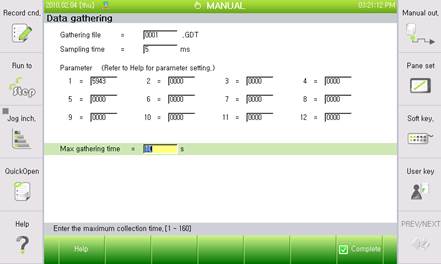

(1)   First the data collection must be set up to collect the information. Enter the message box through 『[F1]: Service』 →『16: Data gathering』.





(2)   For arc sensing, ‘5943’ must be entered in #1 input box of parameter item to indicate data collection for arc sensing. During arc sensing, parameter setting from 2 to 16 is ignored.



(3)   Other setting item is as follows.



l Gathering file

This file is set to save the data collection results. When you press the [F7: End] key, the data collection file of set number will be newly created.



l Sampling time

This setting is not used for arc sensing.



l Max. gathering time

This sets the time to collect the arc sensing data. Arc sensing function saves the data as much as the time set from this item prior to the end point of arc sensing to the gathering file.



The file created based on this setting can be exported to the PC using HRView and the condition can be diagnosed graphically using the Microsoft Excel tool.
