5.6.2.5. CAN Communications Connector CANS1, CANS2

5.6.2.5. CAN Communications Connector: CANS1, CANS2

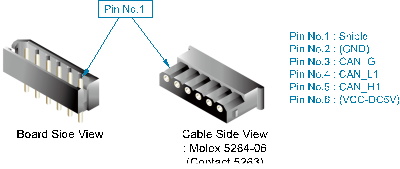

For the CAN Communications Connector, there are two identical connectors with the same pin specification, which are installed as shown in Figure 5.41 below. As CAN communication is conducted through cable, with a Daisy Chaining method, it therefore does not matter which side of the connector it is connected to, as it does not affect the operation.





Figure 5.45 Method for Connecting the CAN Connector of LDIO Board (BD58A)





When the board is installed in the terminal of the CAN communication system, the terminal shall be handled according to the following methods



Table 5-19 How to Deal with the CAN Communication Terminal of the LDIO Board (BD58A)

Board Type	Terminating Equipment	Form	How To Set		Set During Forwarding
			Terminal	Non-Terminal
BD58AV10	Jumper JP1
			SHORT	OPEN	SHORT
BD58AV20	Jumper JP1and JP3
			ALL SHORT	ALL OPEN	ALL SHORT
BD58AV21	DIP Switch SWC1
			ALL ON	ALL OFF	ALL ON
