5.6.1. Outline

5.6.1. Outline



As a board exclusively for LCD, LDIO Board includes the DIO board and CC-LINK, and is installed on the RACK to ensure space inside the controller. The specification of the basic board is as follows.



l Digital input (Photocoupler type): 32 points

l BD58AV10 : Digital Output (Photo MOS Type) 24 Points, Relay Contact Output 8 Points

BD58AV20 And Over : Digital Output (Photo MOS Type) 24 Points, FET (N Channel) Output 8 Points

l CC-LINK communication function included

l RS232 / RS485 select 1 channel

l Installation location: RACK

l 1 Mbps CAN communication

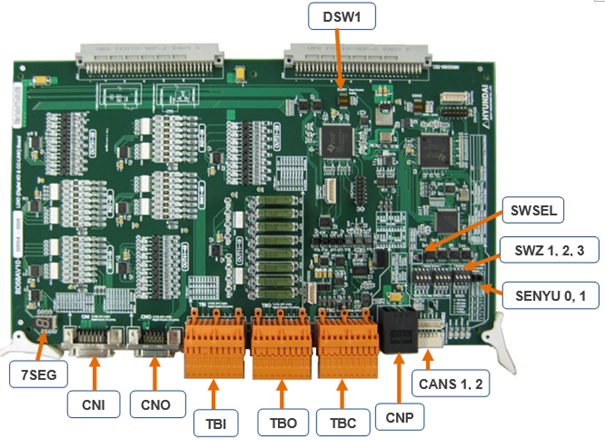

Figure 5.33 Appearance of the LDIO Board (BD58A)

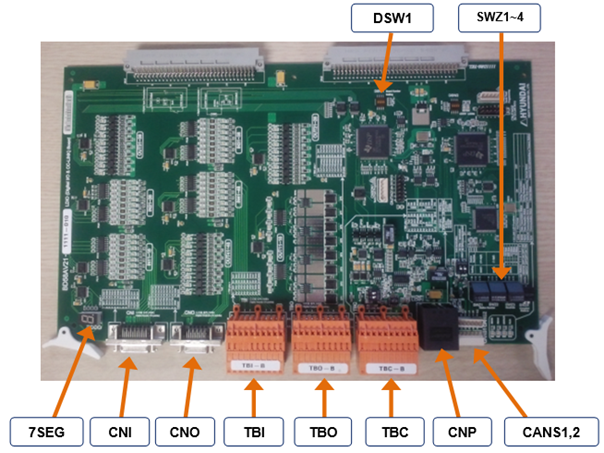

Figure 5.34 Appearance of the LDIO Board (BD58AV21)
