5.4.2.2. Power Connector CNP1

5.4.2.2. Power Connector: CNP1



The Power Connector is the connector for DC5V power to operate the CC-LINK board (BD570), and the pin specification is as shown in Figure 5.21 below.

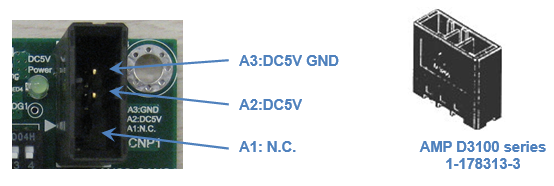

Figure 5.22 Power Connector CNP1 of CC-LINK Board (BD570)
