2.6. Details of Wrist Axis Attachment Surface

2.6. Details of Wrist Axis Attachment Surface​



When attaching the operating tool to the mechanical interface of robot's wrist flange, fasten it with a bolt at P.C.D. 200.

(6-M12 Bolt, Ø12 H7 Pin Hole)

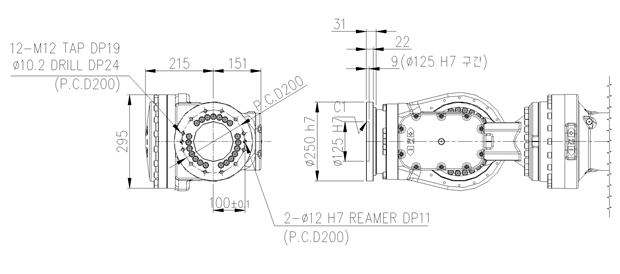

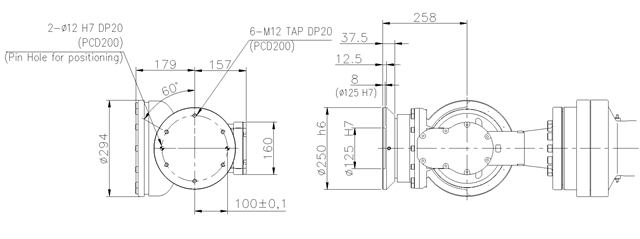

Figure 2.5 Details of Wrist Axis Attachment Surface
