5.1.7. Bearing supporter

5.1.7. Bearing supporter​

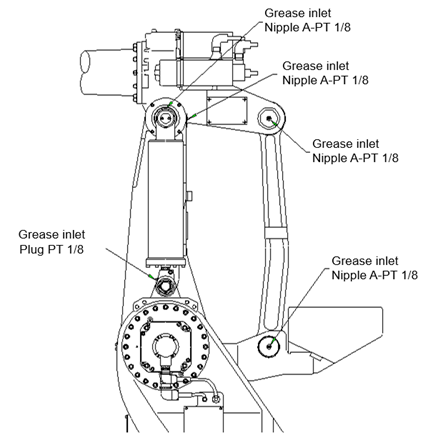

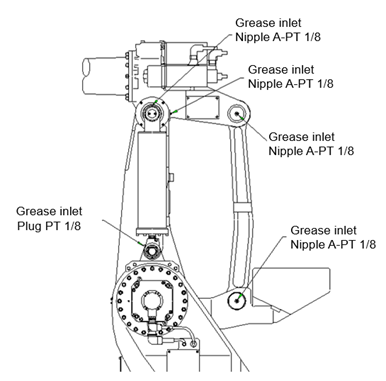

n Grease Replenishment



①    Prepare a grease nipple A-PT1/8.



②    When necessary, remove the inlet plug and assemble the nipple A-PT1/8.



③     Inject the grease into the grease inlet using a grease gun.



ü  Grease type : Gadus S3 V220C 2

ü  Amount of grease : 5cc



④     Remove grease nipple A-PT1/8 from grease inlet port.
